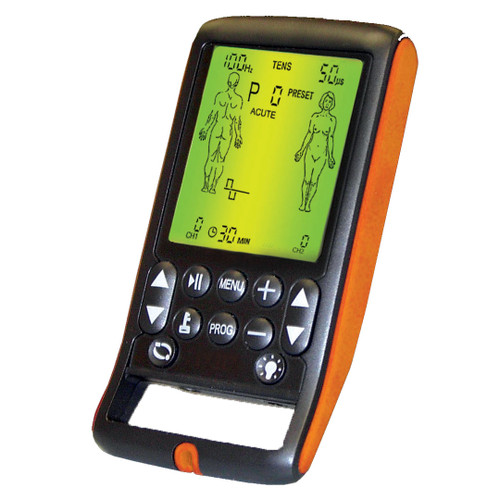

StimTec Plus TENS & EMS Unit

• NECK PAIN
• LOW BACK PAIN
• SCIATICA
• ELBOW PAIN
• WRIST PAIN
• KNEE PAIN (Chronic & Acute)
• ANKLE PAIN
• HIP PAIN
• MENSTRUAL CRAMPS
• MIGRAINE
• TORTICOLLIS

• TRICEPS
• LATISSIMUS DORSI
• SPINALIS MUSCLES
• GLUTEUS
• HAMSTRINGS
• CALVES
• BREAST
• ABDOMEN
• ABDOMEN+WAIST
• QUADRICEPS
• THIGHS

Plus manual modes and LOCK button for both modalities

• Intensity 0-150mA zero to peak at 500ohm load
• Frequency 1-150 Hz
• Pulse width 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180,190, 200, 210, 220, 230, 240, 250¼
• Waveform Symmetrical bi-phase rectangular, Asymmetrical bi-phase rectangular, Mono-phase rectangular
• Treatment timer Continuous, 15, 30, 45, 60, 90min

EMS:

• Intensity 0-150mA zero to peak at 1000ohm load
• Frequency 1-120 Hz
• Pulse width Positive phase: 50-400¼, in steps of 50¼
• Waveform Symmetrical Bi-Phasic rectangular, Alternated Bi-Phasic rectangular
• Ramp up time 0-5 in steps of 1s
• Ramp down time 0-5 in steps of 1s
• On time 1-60 in steps of 1s
• Off time 0-60 in steps of 1s
• Treatment timer Continuous, 10, 20, 30, 45, 60, 90min
